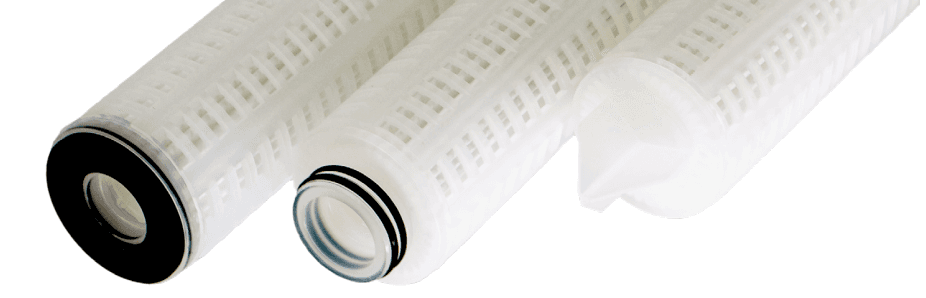

Pleated Filter Cartridge

GHLS-Series Lofted Pleated Polypropylene

by Global Filter

Product information

GHLS-Series High-Loft Pleated Polypropylene filter cartridges provide a 100% polypropylene element designed for removal of agglomerated and deformable contaminants in oils and gels. With its added loft, the GHLS is an ideal combination of both depth and pleated depth functionality.

Features

  1. High retention and holding capacity
  2. pleated depth media is encapsulated in an integral, continuous length, thermally-bonded structure for cleanliness, pressure tolerance, and chemical inertness
  3. Offered in both absolute rated and nominally rated grades
  4. Common adapter configurations
  5. Manufactured in a clean-room environment

Specifications

  1. Material: Polypropylene
  2. Micron Ratings: 0.45, 1, 2, 5, 10, 20, 40
  3. Lengths: 10", 20", 30", 40"
  4. Outside Diameter: 2.7"
  5. O-Rings/Gaskets: Buna, EPDM, Silicone, Viton, Teflon encapsulated Viton
  6. Adders: 316SS Compression Spring, Glass Reinforced PP Core, Heavy Pole Core, SS Insert, 18 Megaohm Rinse, SS Core


Used by real customers in the following industries: Chemicals, Polymers, Inks, Paint & Coatings, Industrial Manufacturing, Biopharm, Food & Beverage
