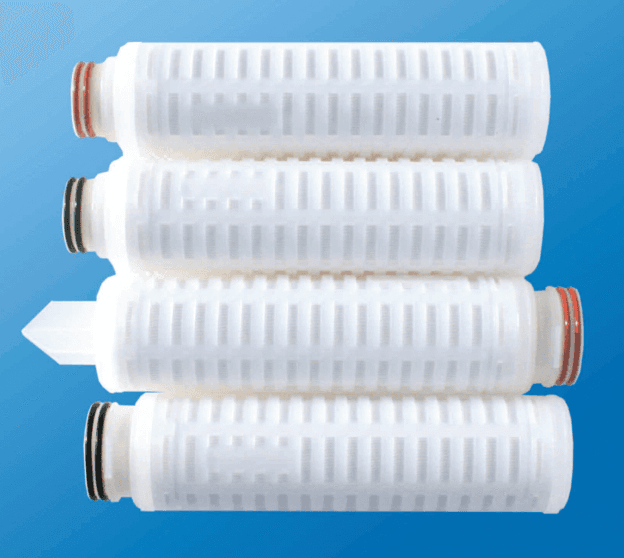

TefTEC cartridge filters are constructed with naturally hydrophobic PTFE membrane and polypropylene support layers and components. The HIMA retentive PTFE membrane offers superior hydrophobicity and water intrusion resistance compared to PVDF and polypropylene membranes, and the cartridge construction offers a cost-effective alternative to all-fluorocarbon filters.
Features
- High surface area, single-layer construction provides superior flow rates and minimizes filtration system size
- Filters are manufactured, flushed, tested and packaged in an ISO Class 7 Cleanroom Environment
- Certifications: USP Class VI - Meets USP Class VI Biological Test for Plastics
- Recommended change-out pressure: 35 psid
- Maximum operating temperature: 203°F
Specifications
- Material: Expanded PTFE membrane
- Micron Ratings: 0.05, 0.1, 0.2, 0.45, 1.0
- Lengths: 5", 9.75", 10", 20", 30" 40"
- Outside Diameter: 2.7"
- Inside Diameter: 1.0"
- Gaskets/O-Rings: Buna-N, EPDM, Silicone, Teflon encapsulated Viron (o-rings), Teflon (gaskets), Viton
Used by real customers in the following industries: Industrial Manufacturing, Biopharm, Microelectronics, Aerospace, Food & Beverage, OEM, Engineering Firm, A&E/Environmental Services, Hospitals & Medical Facilities
